C7521/C7701 Cupronickel Strip | Low Resistance & Easy Machining | Special Material for Mobile Phone

Publish Time: 2026-03-14 13:46:32
Electromagnetic shielding cases in mobile phones and tablets, as well as anti-interference components in base stations and radars, are almost inseparable from C7521/C7701 cupronickel strip. It boasts exceptional non-magnetic properties, effectively isolating electromagnetic signal interference and preventing call dropouts in mobile phones and data errors in radars. For ultra-thin strips ranging from 0.05mm to 0.2mm, the stamping forming precision can reach ±0.01mm.

With a silvery-white luster similar to platinum but at a much lower cost, cupronickel is an ideal choice for jewelry, eyeglass frames, and watch accessories. The 0.3–1.0mm C7521 cupronickel strip delivers a high-brightness finish after polishing, and can be electroplated into gold or silver colors. The necklaces and eyeglass frames made from it are resistant to fading and deformation. Many niche jewelry brands use it as a substitute for silver, cutting costs by half while boosting sales significantly.

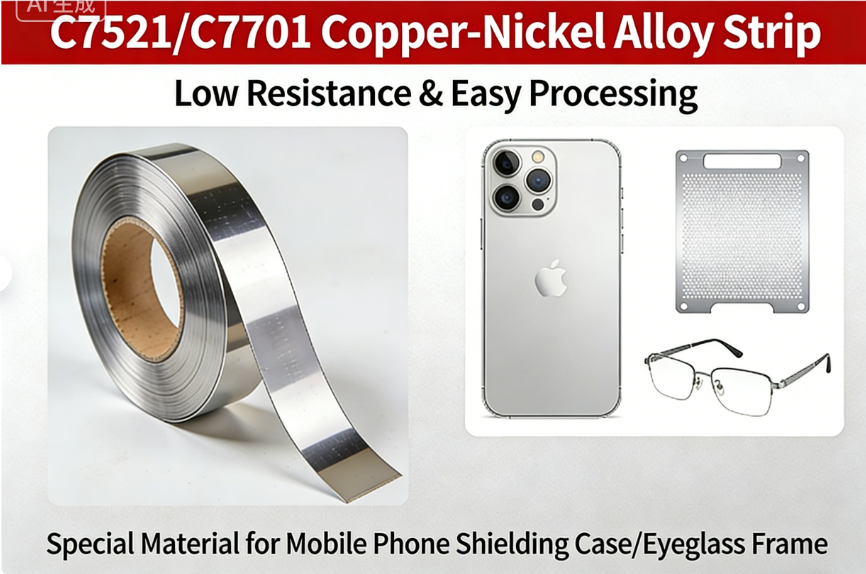

C7521/C7701 Cupronickel Strip | Low Resistance & Easy Machining | Special Material for Mobile Phone (图1)C7521/C7701 Cupronickel Strip | Low Resistance & Easy Machining | Special Material for Mobile Phone (图2)

Seawater and acid-alkaline solutions are highly corrosive, and regular copper materials will rust within a few days. In contrast, C7701 cupronickel sheet, with its high nickel content, has a corrosion rate of ≤0.005mm/a in seawater. Housings for marine detection instruments and pipe fittings for chemical equipment made from 2.0–5.0mm thick sheets can operate stably in harsh environments for over 5 years, greatly reducing maintenance costs.
ElementC7521 Content RangeC7701 Content Range
Copper (Cu)63.0-66.0%54.0-58.0%
Nickel (Ni)16.5-19.5%17.0-19.0%
Zinc (Zn)BalanceBalance
Iron (Fe)≤0.5%≤0.2%
Lead (Pb)≤0.05%≤0.05%
Manganese (Mn)≤0.5%≤0.5%
To put it simply, both C7521 and C7701 are copper-nickel-zinc alloys, with the core difference lying in their copper-nickel ratios:
  • C7521 has a higher copper content, delivering superior ductility and formability.

  • C7701 has a slightly higher nickel content, offering more outstanding corrosion resistance and non-magnetic properties.

The thickness range of 0.05–5.0mm can cover most precision machining needs.

Core Advantages

  1. Full Thickness Coverage: From 0.05mm ultra-thin strips for electronic shielding to 5.0mm thick sheets for structural components, no need to switch materials for different product processing requirements.

  2. Excellent Machinability: Compatible with cold rolling, stamping, bending, and welding processes. Plasticity is further enhanced after annealing, enabling precise forming of complex shapes.

  3. Compliance with International Standards: Meets GB/T 5231, JIS H3130, and ASTM B122 standards, ensuring smooth export to Europe, America, Japan, South Korea, and other regions.

  4. High Cost-Effectiveness: Delivers performance comparable to stainless steel and pure nickel, but at a 30–50% lower price point, significantly reducing production costs in long-term use.
